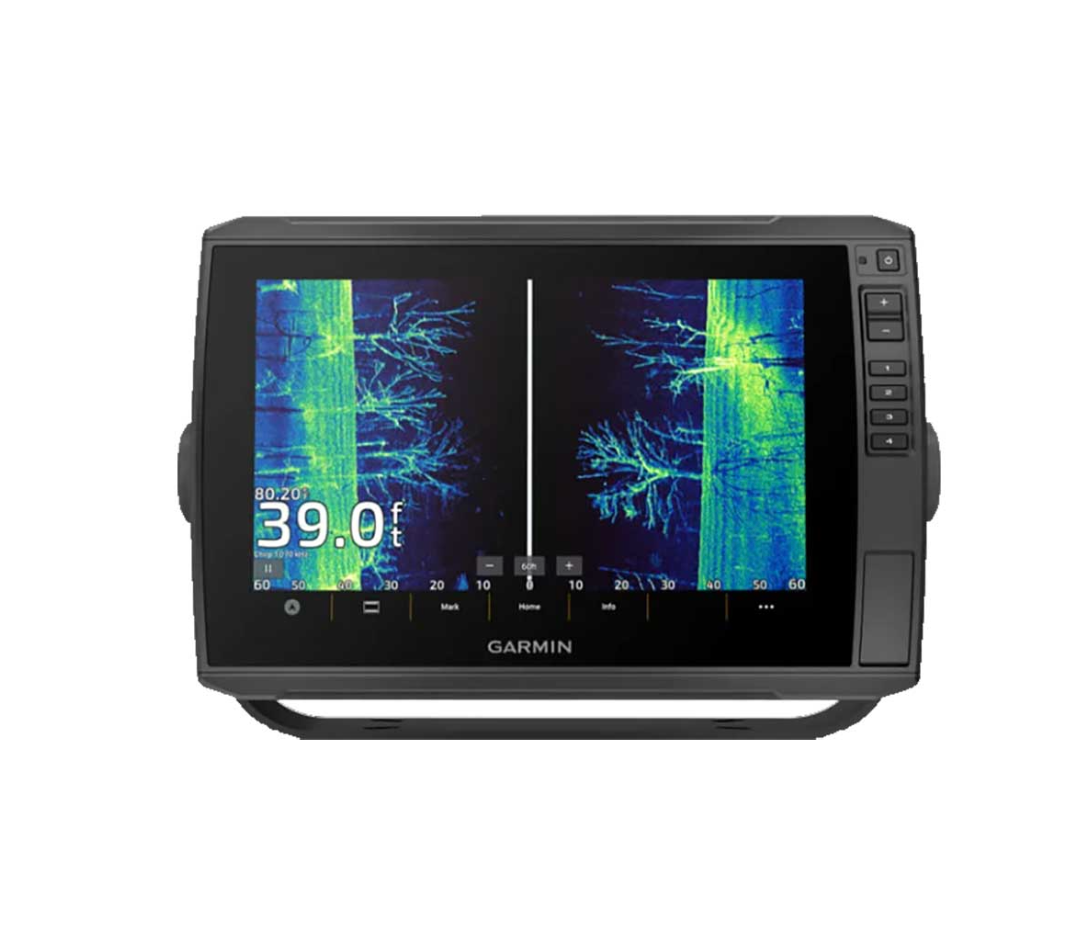

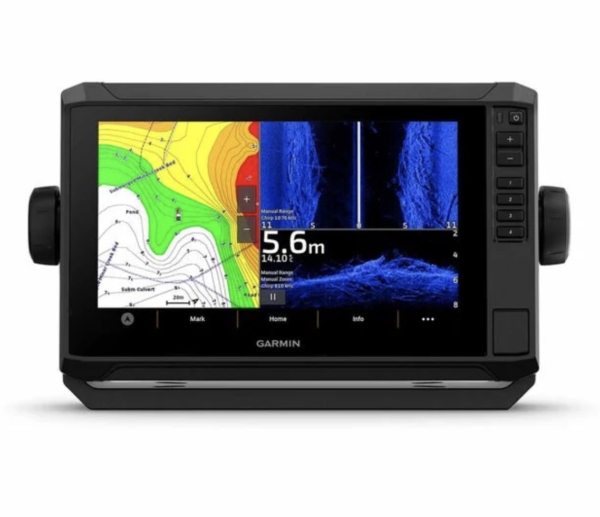

ECHOMAP Ultra 2 106sv Chartplotter 10 in.

The Garmin ECHOMAP Ultra 2 106sv Chartplotter, with a 10 in. sunlight-readable touchscreen display, offers a range of advanced fishfinding features that are easily accessible on these two models. They come equipped with Garmin Navionics+ U.S. Inland & Coastal Mapping, which includes a 1-year subscription for daily updates, depth-range shading, and more. The transducer bundle includes a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for crystal-clear images of what lies beneath the surface. It’s easier than ever to distinguish targets and structure with the high-contrast, vivid scanning sonar color palettes.

The Garmin ECHOMAP Ultra 2 Chartplotter series is an all-in-one device that supports the full lineup of LiveScope live-scanning sonar products and Navionics Vision+ premium mapping (sold separately). It wirelessly shares information with another compatible ECHOMAP Ultra 2 chartplotter, like sonar waypoints and routes. The device has multi-band GPS and NMEA 2000 Network compatibility and pairs with the free ActiveCaptain App. It connects wirelessly to a Force trolling motor and can be installed or removed quickly with its quick-disconnect bail mount. With built-in Garmin Navionics, mapping, and so much more, the ECHOMAP Ultra 2 series is a worthy consideration for making the most of your fishing trips.

• General
  • Dimensions: 11.6″ x 7.7″ x 3.9″ (29.5 x 19.5 x 9.8 cm)
  • Weight: 4.0 lbs (1.8 kg)
  • Waterproof: IPX7
  • Touchscreen: Yes
  • Display Type: WXGA, IPS
  • Display size: 8.5″ x 5.4″; 10″ diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
  • Display resolution: 1280 x 800 pixels

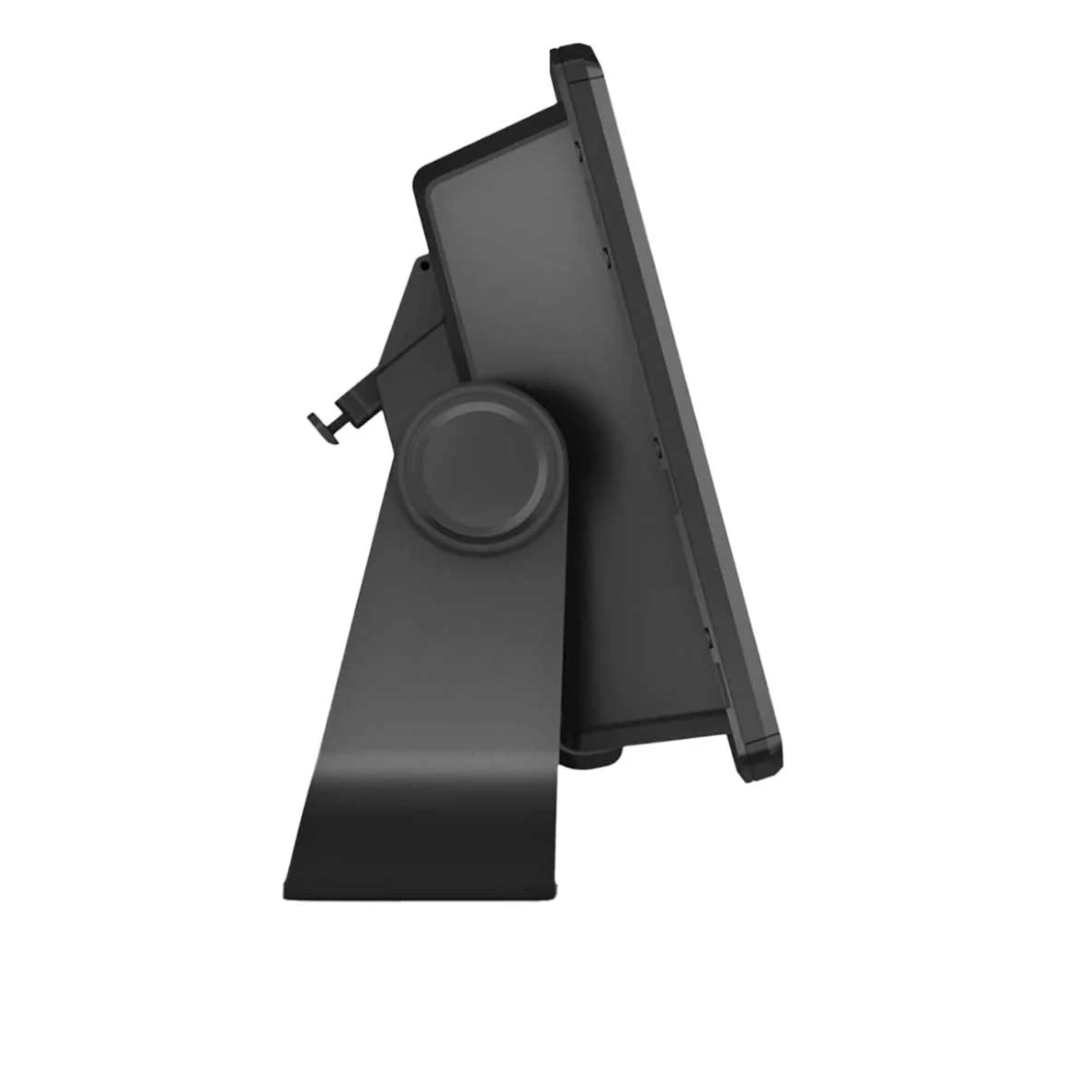

  • Mounting options: Bail or flush
  • Input: Touchscreen with Keyed Assist
• Maps & Memory
  • Accepts data cards: 2 microSD cards
  • Waypoints: 5000
  • Track points: 50,000
  • Tracks: 50 saved tracks
  • Navigation routes: 100
• Sensors
  • GPS: Yes
  • Glonass: Yes
  • Galileo: Yes
  • Beidou: Yes
  • Has built-in receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 compatible: Yes
  • Supports WAAS: Yes
  • Supports multi-band, multi-constellation GPS: Yes
• Built-in Maps
  • Built-in auto guidance+: Yes
  • Garmin Navionics+ Inland & Coastal: Yes
  • Tide Tables: Yes
• Optional Map Support
  • Bluechart G3: Yes
  • Bluechart G3 Vision: Yes
  • LakeVü G3: Yes
  • LakeVü G3 Ultra: Yes
  • Garmin Navionics+: Yes
  • Garmin Navionics Vision+: Yes
  • Topo 100K: Yes
  • Standard mapping: Yes
  • Garmin Quickdraw contours: Yes
• Chartplotter Features
  • AIS: Yes
  • DSC: Yes
  • Supports Fusion-Link compatible radios: Yes
  • ActiveCaptain compatible: Yes
  • Sailing Features: Yes
• Electrical Features
  • Power input: 9 to 18 VDC
  • Typical current draw at 12 VDC: 2.3 A
  • Maximum current draw at 12 VDC: 5.0 A
  • Maximum power usage at 10 VDC: 34 W
• Sonar Features
  • Displays sonar: Yes
  • Power output: 600 W
  • Traditional sonar (Dual frequency/Beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • ClearVü: built-in 260/455/800/1000/1200 kHz
  • SideVü: built-in 260/455/800/1000/1200 kHz
  • Panoptix Sonar: Yes
  • Livescope: Yes

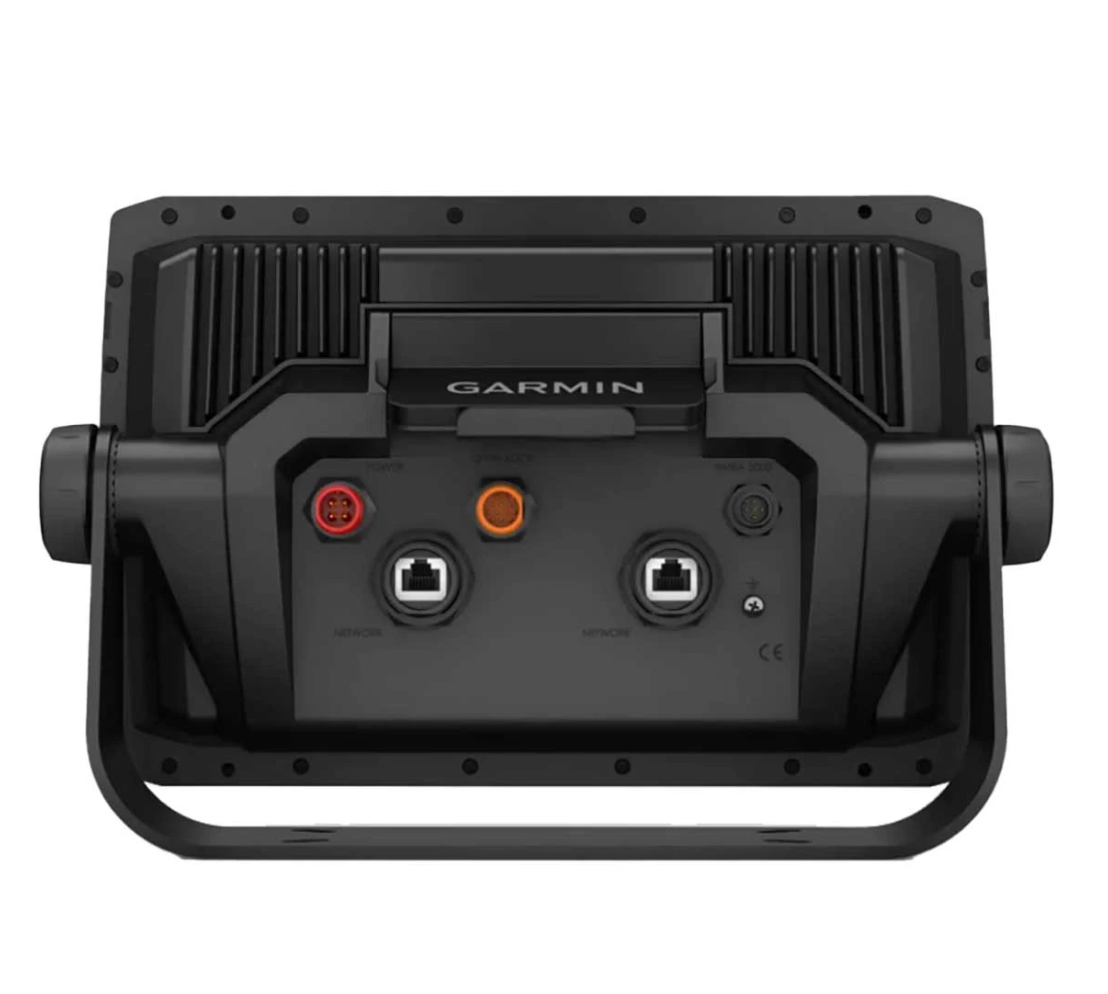

• Connections
  • NMEA 2000 ports: 1
  • Garmin Marine Network ports: 2 (large connector)
  • 12-PIN transducer ports: 12-pin scanning sonar
  • ANT+ (connectivity): Yes
  • Garmin Wi-Fi network (local connection): Yes
• In the Box with Transducer:
  • Part #: 010-02880-01
  • ECHOMAP Ultra 106sv with optional Garmin Navionics+
  • GT56UHD-TM transducer
  • Power/data cable
  • Bail mount with quick-release cradle
  • Protective sun cover
  • Hardware
  • Documentation
• In the Box without Transducer:
  • Part #: 010-02880-00
  • ECHOMAP Ultra 106sv with optional Garmin Navionics+
  • Power/data cable
  • Bail mount with quick-release cradle
  • Protective sun cover
  • 8-pin transducer to 12-pin sounder adapter cable
  • Hardware
  • Documentation
• Manufacturer’s one-year warranty
